Topic Title: Vertical lines on games on Radeon HD 4850 GT
Topic Summary: I'm getting vertical lines in games
Created On: 09/23/2012 11:37 AM
Status: Post and Reply
Linear : Threading : Single : Branch
Search Topic Search Topic
Topic Tools Topic Tools
View similar topics View similar topics
View topic in raw text format. Print this topic.
 09/23/2012 11:37 AM
User is offline View Users Profile Print this message

Author Icon
Jester
n00b

Posts: 3
Joined: 09/23/2012

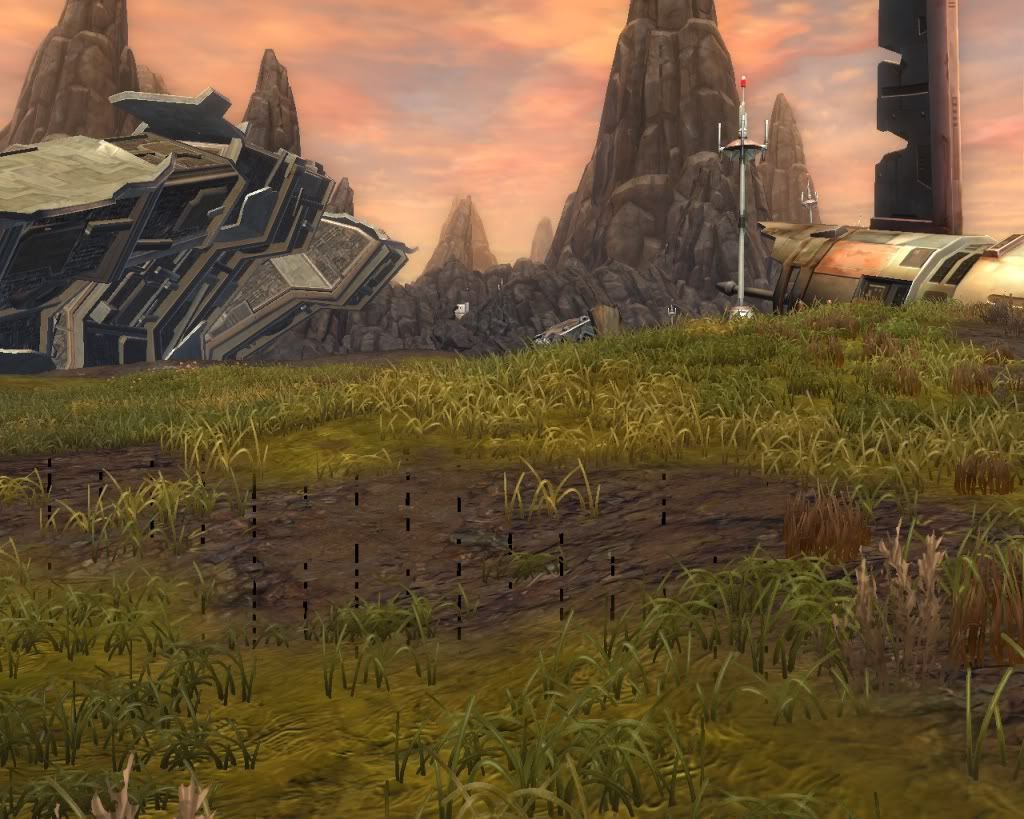

Hey there, so as the topic says I'm getting vertical lines in my games, in some games they appear more as small boxes though they still go upwards in a line. This has only started happening since I reformatted my PC about two weeks ago and since then it's been getting worse and worse.

My PC stats are.

Motherboard: ASUS M4A89GTD

Processor: AMD Phenom(tm) II X6 1055T Processor 2.80 GHz

Ram:4GB

OS : Windows 7 Service pack 1 64-bit.

Graphics Driver: 12.6 (before the format it was also 12.6 and it had no problems.)

Graphic Temps Idle
GPU Temp: 61 C
GPU Temp (DISPIO) 51.5 C
GPU Temp (MEMIO) 65.5 C
GPU Temp (SHADERCORE) 56 C

Graphic Temps Running SWTOR
GPU Temp: 77 C
GPU Temp (DISPIO) 92 C
GPU Temp (MEMIO) 92 C
GPU Temp (SHADERCORE) 89 C

Thanks in advance to anyone offering help and I'll provide whatever additional details are needed if asked for them.



 09/23/2012 02:39 PM
User is offline View Users Profile Print this message

Author Icon
Eydee
Ninja Zombie Killer

Posts: 4860
Joined: 12/27/2008

It seems like a dead card to me. Try it in another computer.



-------------------------

CPU: AMD Phenom II X4 810 @ 3120MHz | RAM: Kingmax 2x2GB DDR2 800 @ 833MHz| MoBo: MSI K9A2 CF v1.0 (BIOS: 1.D)| GPU: Asus HD 6850 1024MB (DirectCu) @ 835/1135MHz | Display: L24FHD | PSU: PC Power & Cooling Silencer 750 Quad | OS: MS Windows 3.11 Pro x64

 09/23/2012 07:55 PM
User is offline View Users Profile Print this message

Author Icon
-rascal-
Farming Materials

Posts: 538
Joined: 01/15/2011

It may be that your HD 4850 is beginning to fail.

Graphic Temps Running SWTOR
GPU Temp: 77 C
GPU Temp (DISPIO) 92 C
GPU Temp (MEMIO) 92 C
GPU Temp (SHADERCORE) 89 C

92*C is quite hot. I have never seen my reference design, isngle slot HD 4850 run that hot....ever.

When was the last time you cleaned the card from the dust build up? 92*C...

I'm not talking about just cleaning the outside of the card. I mean inside the fan and heatsink assembly (cooling fin array).

Have a look:

http://imageshack.us/photo/my-images/208/4850hm1.jpg/



-------------------------

Phenom II X6 1090T @ 4.1GHz FX-8350 @ 4.8GHz // ASUS Crosshair V Formula 990FX // Sapphire Radeon HD Dual-X 7970 @ 1150/1500 // Thermaltake Frio w/ push-pull (using Antec Formula 7 Nano-Diamond + Cooler Master JetFlo fans) // 8GB (2 X 4GB) G.Skill RipJawsX 2133MHz  // Corsair TX850 850W // Corsair Force GT 120GB SSD (OS) // Kingston V200+ 120GB SSD // WD Caviar Black 1TB // Windows 7 Ult x64

 09/23/2012 08:51 PM
User is offline View Users Profile Print this message

Author Icon
black_zion
80 Column Mind

Posts: 12330
Joined: 04/17/2008

I concur, not even my 5970 runs that hot in games, even when clocked up to 5870 speeds, and it doesn't take a heck of a lot of dust in the very tight quarters of a GPU heatsink to elevate temps, although I suspect after 4 years the TIM is dried up on the GPU and the thermal tape/pads is/are not doing its/their job either. Another thing is your PSU, which we don't know what it is yet, if it isn't sufficient it will cause problems. Finally it can be the drivers, try going back to 12.1.

-------------------------
ASUS Sabertooth 990FX/Gen3 R2, FX-8350 w/ Corsair H60, 8 GiB G.SKILL RipjawsX DDR3-2133, XFX HD 7970 Ghz, 512GB Vertex 4, 256GB Vector, 240GB Agility 3, Creative X-Fi Titanium w/ Creative Gigaworks S750, SeaSonic X750, HP ZR2440w, Win 7 Ultimate x64
 09/24/2012 05:29 AM
User is offline View Users Profile Print this message

Author Icon
Jester
n00b

Posts: 3
Joined: 09/23/2012

Ok I'd previously tried downgrading to 12.5 and 12.4 but they didn't change a thing. Downgrading to 12.1 though has made the lines vanish. I'm going to keep an eye on the card temp though, as I agree it does run quite high even though I noted down the (DISPIO) when SWTOR wrong. It was running at 77 C not 92 C. Only the MEMIO was running at 92 C. As for cleaning it, I'm hesitant to take the card apart so I'm leaving that for if the lines return. As for how old my card is, I only brought it last year.



Edit: Ok after an hour's play, the lines returned in full force, I checked the GPU temp and it was sitting pretty at around 74 C.



Edited: 09/24/2012 at 06:49 AM by Jester
 09/24/2012 12:14 PM
User is offline View Users Profile Print this message

Author Icon
Mime
Forum Moderator

Posts: 578
Joined: 08/28/2012

Are vertical lines the only kind of artifact you're seeing?  Temperatures in the high 70s are still pretty toasty, but artifacts caused by heat are usually more... random.  Polygons stretched out by misplaced vertices, weird off-color pixels that flicker in and out, and missing/disorted textures are all common when there's too much heat.  If it's always only vertical lines though, then that makes me think of a driver bug, or something else more repeatable than weirdness from too much heat.



-------------------------

Do not meddle in the affairs of archers, for they are subtle and quick to anger.
Post Count: +8510
Troll Hunter

The opinions expressed above do not represent those of Advanced Micro Devices or any of their affiliates.



Edited: 09/24/2012 at 12:40 PM by Mime
 09/24/2012 12:50 PM
User is offline View Users Profile Print this message

Author Icon
Eydee
Ninja Zombie Killer

Posts: 4860
Joined: 12/27/2008

Those temps are indeed hot, but perfectly fine for single slot 4850, and far from what can cause real damage. As far as I know the GT is a single slot version of the 4850. I still suggest trying it in another computer.



-------------------------

CPU: AMD Phenom II X4 810 @ 3120MHz | RAM: Kingmax 2x2GB DDR2 800 @ 833MHz| MoBo: MSI K9A2 CF v1.0 (BIOS: 1.D)| GPU: Asus HD 6850 1024MB (DirectCu) @ 835/1135MHz | Display: L24FHD | PSU: PC Power & Cooling Silencer 750 Quad | OS: MS Windows 3.11 Pro x64

 09/25/2012 05:09 AM
User is offline View Users Profile Print this message

Author Icon
Jester
n00b

Posts: 3
Joined: 09/23/2012

So I did a bit of experimenting, I left the game running with the vertical lines when they appeared and about 10 minutes later a hell of a lot more artifacts appeared, from flickering HP bars to screen tearing. Closing the game revealed that it had also affected everything outside the game as well and had left large mutlicolored horizontal lines across the decktop. Rebooting removed the lines and I then lowered the graphics settings on the game to see how long it would last on the lower setting. On the lower setting it encountered no problems at all and the graphics problem didn't appear, which makes me think it is without a doubt a heat problem.

So I've gone and brought myself a new card. It's a shame that only after one year with this, until now, excellent card (I mean it was still ranked as 7.4 on window's system check) I've had to get another one but it seems like this is the only solution. Thanks again everyone for your help with this.

 09/25/2012 08:37 AM
User is offline View Users Profile Print this message

Author Icon
black_zion
80 Column Mind

Posts: 12330
Joined: 04/17/2008

It's a 4 year old card with something like 60 different components which are subject to extreme swings in temperatures on a daily basis, so it wouldn't take much for a solder joint to come loose or a memory chip to develop a bad address range. You could have tried to bake it in the oven before you went out and bought a new one, then again the HD 4000 series is legacy so it was time to move to supported hardware, like a HD 6770

-------------------------
ASUS Sabertooth 990FX/Gen3 R2, FX-8350 w/ Corsair H60, 8 GiB G.SKILL RipjawsX DDR3-2133, XFX HD 7970 Ghz, 512GB Vertex 4, 256GB Vector, 240GB Agility 3, Creative X-Fi Titanium w/ Creative Gigaworks S750, SeaSonic X750, HP ZR2440w, Win 7 Ultimate x64
 09/25/2012 08:57 AM
User is offline View Users Profile Print this message

Author Icon
fretboard
Member

Posts: 329
Joined: 01/21/2010



If we had system specs as per the STICKY thread, then we could probably pinpoint things better - could eliminate PSU if a good brand or say "Hey, those drivers & that game = bad, try ... " etc. Did it ever get cleaned within that year of usage - could be overheating .. Did you ever replace the thermal paste to eliminate that as an issue etc etc etc etc ?? ?? ??

Mind you, upgrading to a non-legacy card was a good idea anyhow .. even if you think the WEI as a "great" benchmark & think 7.4 actually means something



-------------------------

AM3 965BE / Corsair H70 / 4Gb Corsair XMS3 2000Mhz / GigaByte 990FXA-UD5 / Corsair Force3 90Gb / x2 HD3870 Atomic Edition / x4 1Tb Storage & Momentus XT 250Gb / Sony AD-7700 DVD-RW / Auzen X-Mystique / Enermax INFINITI 650W / Lian-Li PC-7FNWB / Logitech X-530 / Logitech KBoard & MX620 / Logitech C525 / Epson RX685 / DELL U2312HM
